| Brand Name : | Hawkvor |
| Model Number : | 5133B |
| Certification : | FCC, CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 15 working days |

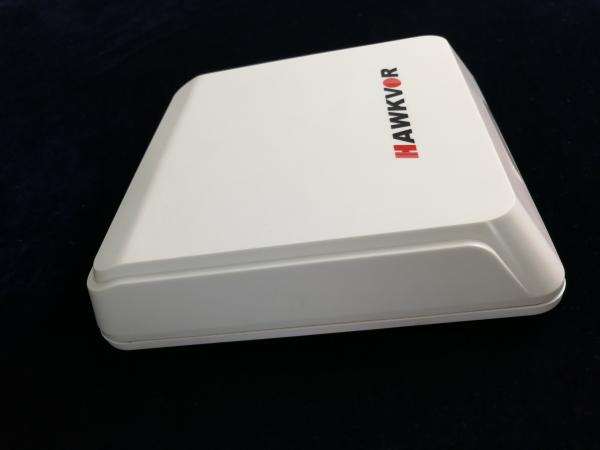

Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved
The Integrated Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved includes UHF read module, input/output interfaces, high performance antenna and LED indicator, this structure makes the product more stable and installation easier.
The reading range can be up to 12 meters even though the size is compact.
Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved Specification:
| Frequency | 902~928MHz(FCC Part 15); 865.6~867.6MHz(Eu) /other regional frequency band |
| Interfaces | Wiegand 26/34,RS232 or RS485 |
| Reading range | Up to 12 meters |
| Supply power | +10~+26V DC/3A |
| API | JAVA, .NET, C++ |
| RF power | 20~30DBm |
| Protection | IP65 |
| Working Temperature | -20 ~ +70°C |
| Storage Temperature | -40 ~ +85°C |
| Dimmension | 215*225*52 mm |
| Supported Protocols | EPC C1 Gen2 (ISO18000-6C) |
| Humidity | 0%~95% (non-condensing) |
| Net Weight | 0.8KG |
| Gross Weight | 1.8KG |
Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved With Installation Kit Firmware:
Functions Type | Mode | Power adjustable | Interface | Trigger Mode | Anti-PassBack | Voice/light prompt on/off | Second Development |
| 5133B-Type 1 | Read&Write | Yes | RS232 | No | No | Yes | Yes |
| 5133B-Type 2 | Read only | Yes | W26/W34/RS232/RS485 | No | Yes | Yes | No need |
Hawkvor Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE
FCC Approved 5133B is a fully integrated compact sized UHF reader that
specifically designed for applications in vehicle management,
access control, warehouse management etc..
The read only design with Wiegand interface makes it easier to integrate to parking system or other access control system. RS232 and RS485 interfaces are optional if necessary.
Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved Features:
Fully integrated
Reading range : 12meters.
Easy installation: Unique scale design installation kit for easy installation
Humanity design:beep and light prompt
Stable performance:Large-scale application, The core modules has been widely used in the industrial environment for 10 years.
Compatible with EPC C1 Gen2(ISO18000-6C)
Parking Management System UHF Fixed Reader ISO18000-6C Protocol CE FCC Approved Physical Parameters:
Unit size: 215x 225 x 52 mm
Packing size: 240 x270x 100 mm
Packing: 1pc/ctn
NW: 0.78kg
GW: 1.8kg(with installation kit and package)
Installation: with professional installation kit
|
|
