Shenzhen Hawkvor Science & Technology Co., Ltd.
7 Years
| Ask Lasest Price | |
| Brand Name : | Hawkvor |
| Model Number : | 5121B |
| Certification : | FCC, CE |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 15 working days |
RS485 or RS232 Long Range RFID System Reader Up To 18 Meters ISO18000-6C Protocal for Vehicle Access Management
The read only design with Wiegand interface makes it easier to integrate to parking system or other access control system. RS232 and RS485 interfaces are optional if necessary.
RS485 or RS232 Long Range RFID System Reader Specification:
| Model No. | 5121B |
| Frequency | 902~928MHz(FCC Part 15); 865.6~867.6MHz(Eu) /other regional frequency band |
| Interfaces | Wiegand 26/34,RS232 or RS485 |
| Reading range | Up to 18 meters |
| Supply power | +10~+26V DC/3A |
| API | JAVA, .NET, C++ |
| RF power | 20~30DBm |
| Protection | IP54 |
| Working Temperature | -20 ~ +70°C |
| Storage Temperature | -40 ~ +85°C |
| Dimmension | 370*360*96mm |
| Supported Protocols | EPC C1 Gen2 (ISO18000-6C) |
| Humidity | 0%~95% (non-condensing) |
| Net Weight | 2.75KG |
| Gross Weight | 4KG |
RS485 or RS232 Long Range RFID System Reader Firmware:
| Type | Mode | Power adjustable | Interface | Trigger mode | Anti-Pass Back | beep/light prompt on/off | SDK |
| 1 | Read&Write | Yes | RS232 | No | No | Yes | Yes |
| 2 | Read only | Yes | W26/W34/RS232/RS485 | Yes | Yes | Yes | No need |

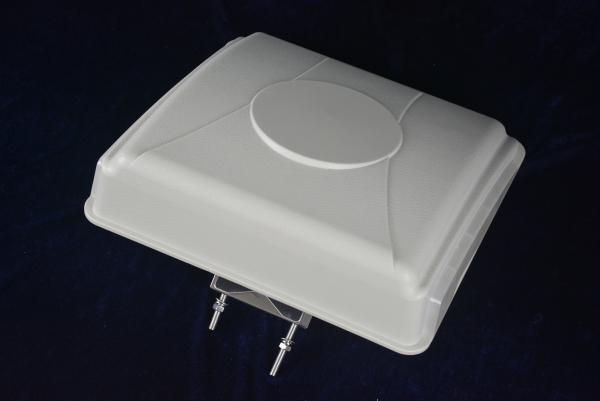

Hawkvor 5121B RS485 or RS232 Long Range RFID System Reader Up To 18 Meters
ISO18000-6C Protocal for Vehicle Access Management is a fully integrated UHF reader that specifically designed for
vehicle access management, pedestrian access control, logistics
management, asset management etc. .
The Integrated RS485 or RS232 Long Range RFID System Reader includes UHF read module, input/output interfaces, high performance antenna and LED indicator, this structure makes the products more stable and installation easier.
The up-to-18 meters long reading range makes reading faster, and even the labels are installed behind wind-shield with explosion-proof film, they can still be read by HAWK5121B UHF reader.
RS485 or RS232 Long Range RFID System Reader Features:
Long reading range : up to 18 meters
Integrated structure:easy installation, easy use.
Humanity design:beep and light prompt
Stable performance:widely used in different areas, the core modules has been widely used in the industrial environment for 10 years.
Compatible with EPC C1 Gen2(ISO18000-6C)
|
|
